Prepared for the future


More room. More axes. More diode laser.

  • Automatic safety door with large viewing window
  • For marking metals and plastics
  • Including extraction system
  • Operation as Stand-alone-machine or automatically with robotic systems
  • Automatic z-axis for focussing
  • 10 watt diode laser for marking medium sized series
  • Title block: 120 x 120 mm
  • For maximum part size 535 x 272 x 342 mm (B x T x H)
  • Including extraction system
  • Red positioning laser
  • Fast and easy installation and operation
  • Cabinet with laser safety class 1
  • Data base connection to existing systems
  • With perforated plate
  • Pneumatic door opening and closing
  • With safety pressure bar
  • Large working area
  • Automatic x- and z-axis
  • Framed roller table with embedded PC
  • Integrated extraction system
  • Markings of many small or single large parts
  • Easy and comfortable operation
  • For maximum part size 740 x 480 x 340 mm (W x D x H)
  • Marking field up to 530 x 180 mm
  • With large perforated plate
  • Cabinet of laser safyte class 1
  • Data base connection to existing systems
  • Various accessories (e. g. rotary axes)

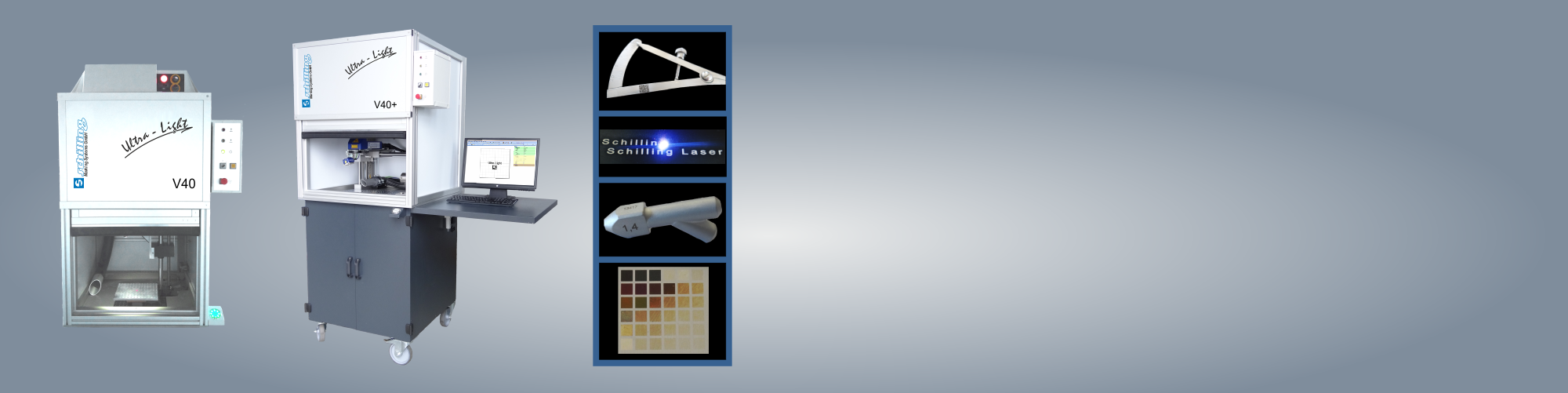

The new marking laser Ultra-Light V40 combines compact design with smart automation technology: Therefore the Ultra-Light can be operated as Stand-alone-machine and, if necessary, also combined with robotic systems for automatic part markings. The basic scope of supply includes a 10 watt laser source for marking medium quantities, a laser safety cabinet with pneumatic safety door, an automatic z-axis, a large perforated plate and an embedded PC with marking software. Furthermore the scope of delivery includes an extraction system. Within the marking field of 120 x 120 codes (Barcodes, Datamatrix, QR...), graphics, logos, texts, numbers and continuous numberings can be realized easily.

The marking laser Ultra-Light V40+ is perfect for markings on large parts. Besides the large working area the Ultra-Light Plus cabinet furthermore offers more marking comfort. The scope of delivery of the Ultra-Light V40+ includes a 10 watt diode laser source, a large safety cabinet with pneumatic door opening and closing, a large perforated plate, an embedded PC with marking software and an automatic x- and z- axis. Additionally a high-quality extraction system is included. The additional automatic x-axis of the Ultra-Light Plus series increases the marking field to up to 530 x 180 mm. Various accessories complete the marking laser product portfolio.

Marking Laser Options and Accessories

Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:

If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.

Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.
