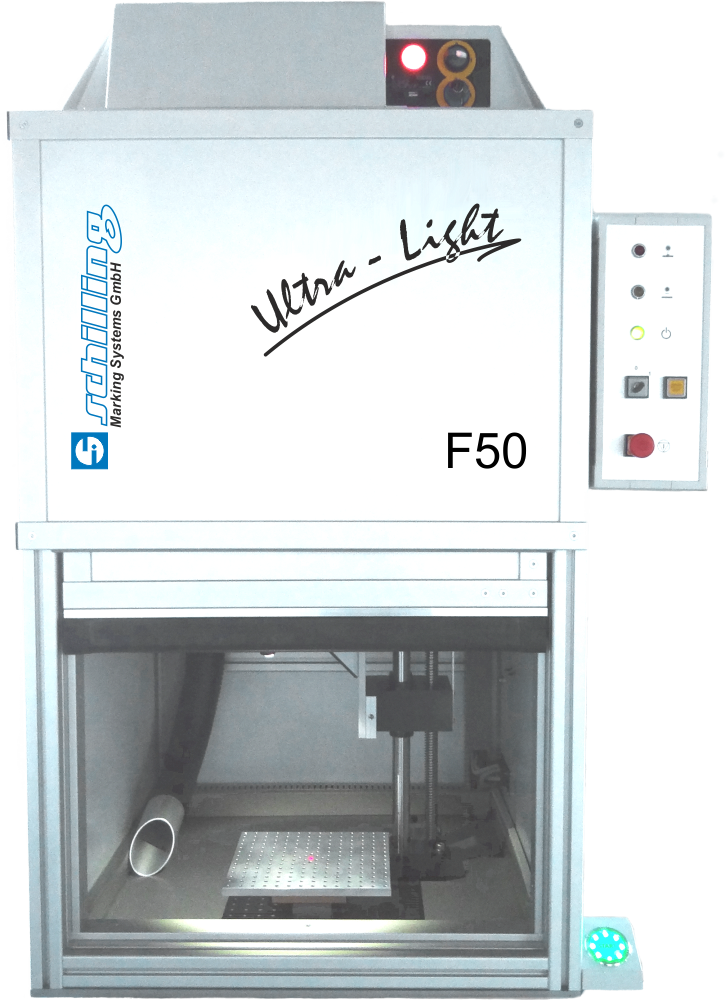

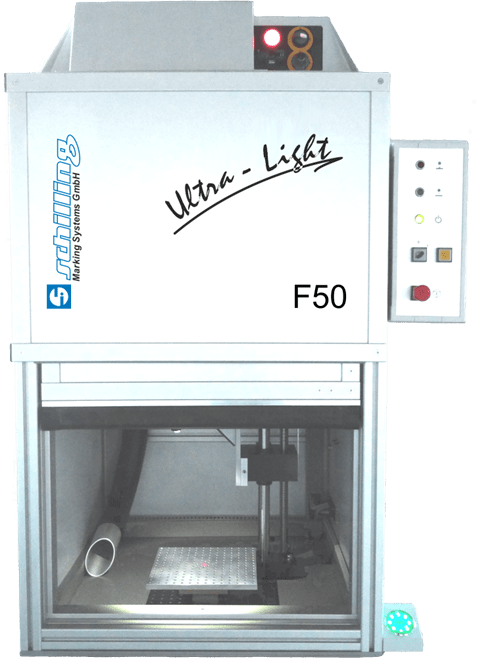

ULTRA-LIGHT F50

Fast and deep laser engravings

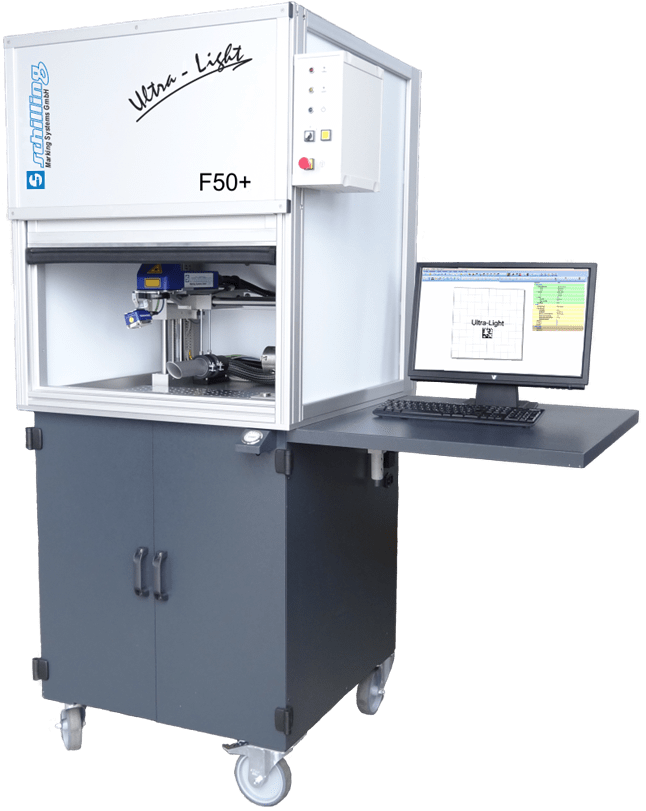

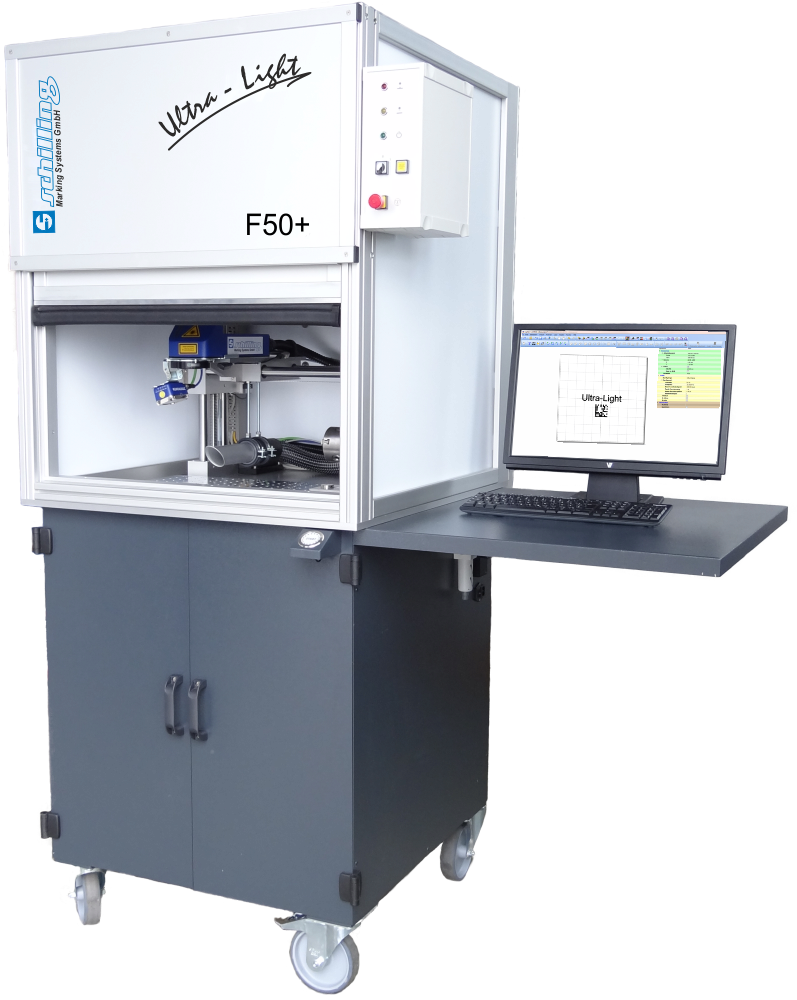

ULTRA-LIGHT F50+

The faster future





  • 50 watt fiber laser for large quantities
  • Pneumatic door opening and closing
  • Perfect for deep engravings on metals
  • Including extraction system
  • For maximum part size 535 x 272 x 342 mm (W x D x H)
  • Title block: 140 x 140 mm
  • Automatic z-axis
  • Large perforated plate
  • Cabinet with safety pressure bar
  • Database connection to existing systems
  • Red positioning and focussing laser beam
  • Easy and comfortable operation
  • 50 watt fiber laser for very large quantities
  • Very fast laser engravings
  • Automatic door opening and closing
  • Marking field up to 530 x 180 mm
  • Framed roller table with included extraction system
  • Quiet operation
  • For maximum part size 740 x 480 x 340 mm (W x D x H)
  • Compact dimensions with large working area
  • Large perforated plate
  • Cabinet with laser safyte class 1
  • Database connections possible
  • Various accessories (e. g. rotary axes) available

The 50 watt fiber marking laser Ultra-Light F50 is the fastest marking laser in the Schilling Mega-Light family and is thus especially suited to engrave large numbers of parts. In order to achieve high marking efficiency, the F50 is equipped with a standard marking field of 140 x 140 mm. Individual devices additionally increase the marking speed, since the ideal use of the available marking space is facilitated and insertion of the parts is simplified. Thus time and money can be saved. Furthermore, the large F50 laser protection cabinet of laser safety class 1 allows quick, professional and contact-free marking of individual large components or many smaller parts. Thanks to the programmable automatic z-axis, you are always flexible with regard to the component height of your parts to be marked.





For marking larger parts, the 50 watt laser source can be integrated in the large standard cabinet of the Ultra-Light Plus series. The additional automatic x-axis of the Ultra-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Ultra-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the Ultra-Light F50+ can easily be adapted to special marking requirements.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.
