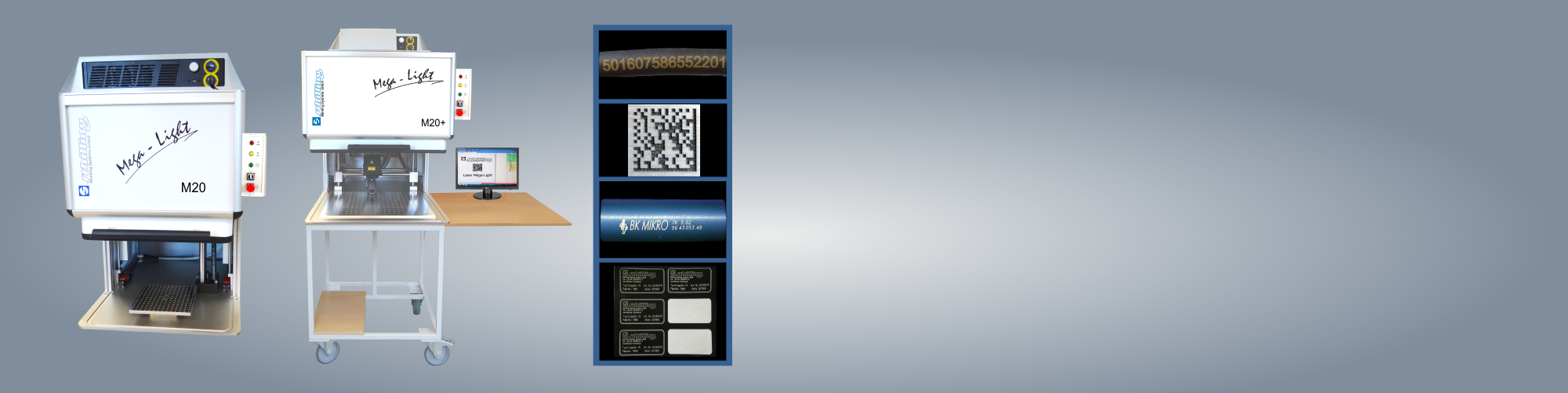

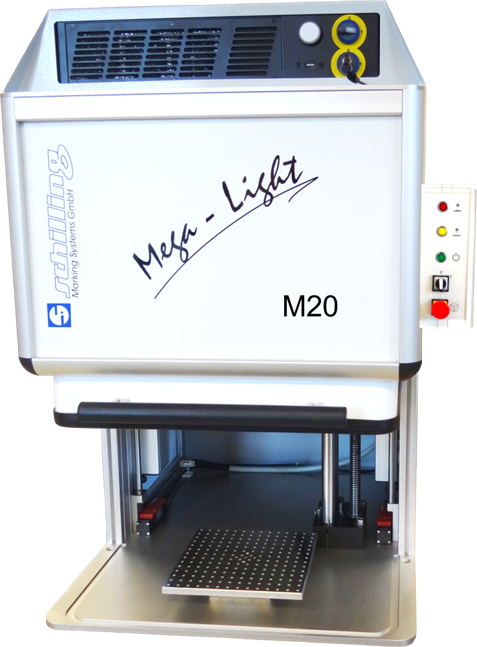

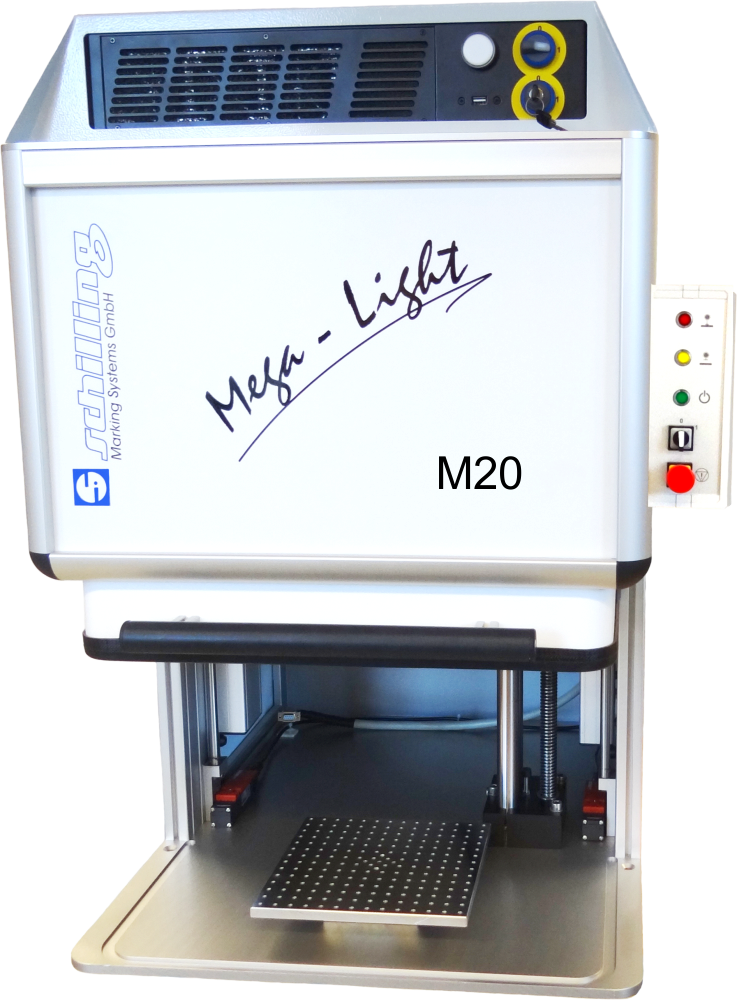

MEGA-LIGHT M20

The new short pulse fiber laser

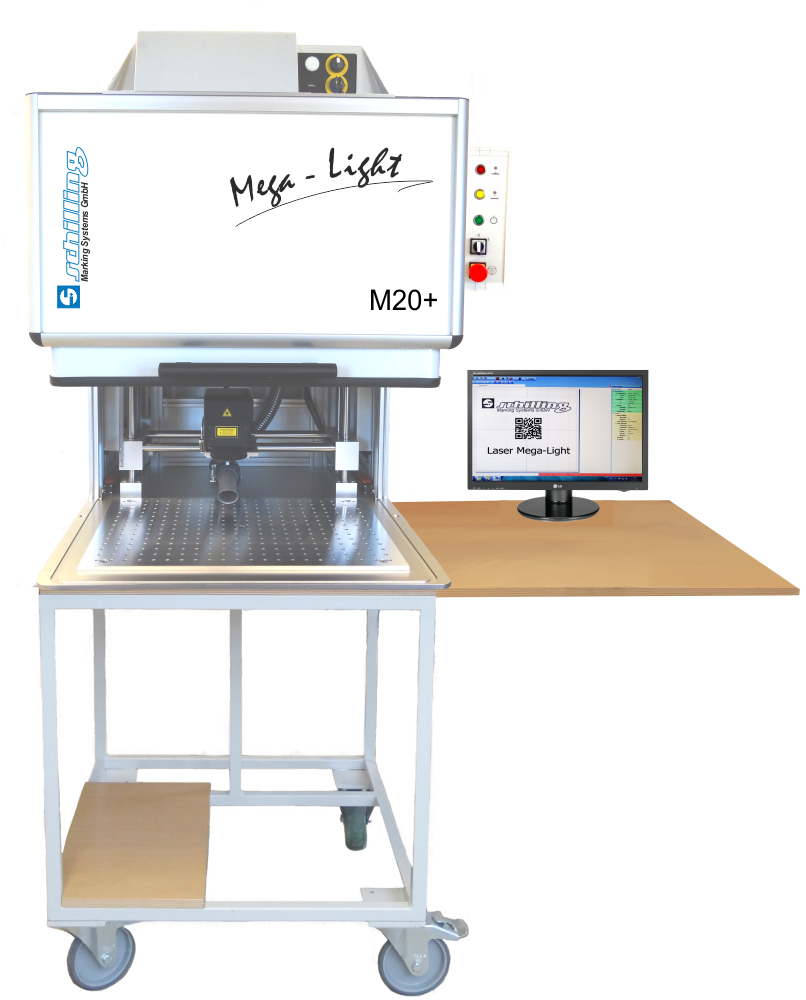

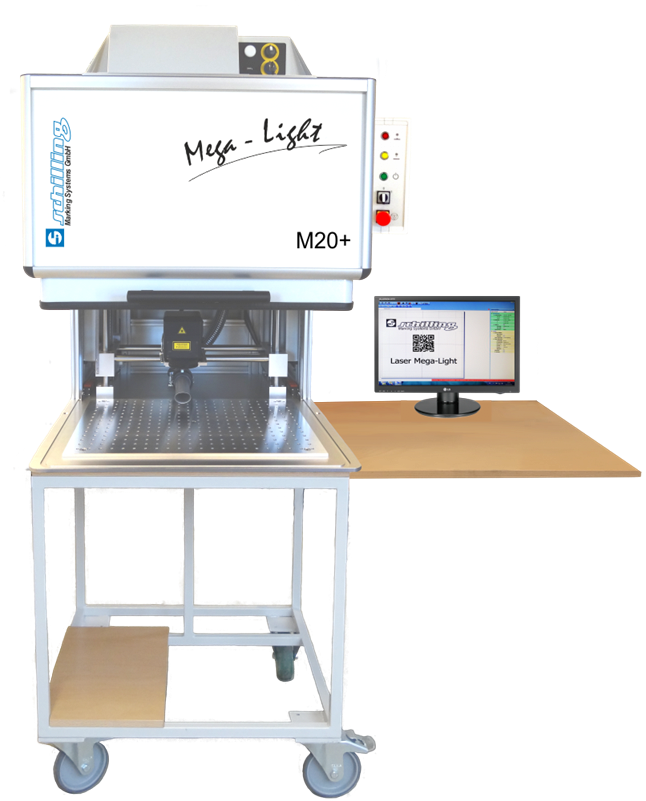

MEGA-LIGHT M20+

Short pulses a class bigger





  • Short pulse fiber laser with 20 watt power
  • Manual door with comfortable U-shape
  • New MOPA (Master Oscillator Power Amplifier) technology
  • For very fast laser markings
  • Perfect for plastics and sensitive materials
  • High frequencies up to 500 kHz
  • Adjustable pulse widths
  • Black laser markings on annodized aluminium
  • For maximum part size 465 x 262 x 254 mm (L  x W x H)
  • Title block: 140 x 140 mm
  • Automatic z-axis
  • With large perforated plate
  • Laser safety cabinet laser class 1
  • Database connections
  • Various accessories (e. g. rotary axes)
  • 20 watt short pulse fiber laser for large quantities
  • Fast laser markings on metals and plastics
  • Laser safety cabinet on roller table
  • Compact with embedded PC
  • Manual door with protection window and comfortable U-shape
  • Also available as Ultra-Light version with automatic door
  • For marking large parts or many small parts
  • Maximum part size 545 x 655 x 300 mm (L x W x H)
  • Simple and comfortable operation
  • Marking field up to 530 x 180 mm
  • Automatic x- and z-axis
  • With large perforated plate
  • Database connections possible
  • Inspection system for codes
  • Various accessories (e. g. rotary axes)

Marking laser machines are pulsing the light. That means that the laser light is emitted in portions (so called pulses). Mostly these pulses can not be changed. With the 20 watt short pulse fiber laser Mega-Light M20 it is possible to adjust the pulse. That way pulses of up to up 500 kHz can be realized. The combination of short pulses and high frequencies is for instance good for realizing sensitive laser markings. Therefore the M20 is very good for marking plastics or medical instruments. Another advantage of the short pulse fiber laser technology is the very short marking time. Therefore the M20 is especially suited for marking (very) large numbers of parts.





For marking larger parts, the short pulse fiber laser M20 can be integrated in the large standard cabinet of the Mega-Light Plus series. The additional automatic x-axis of the Mega-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Mega-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the Mega-Light M20+ can easily be adapted to special marking requirements. For instance database connections and traceability solutions are available.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.
