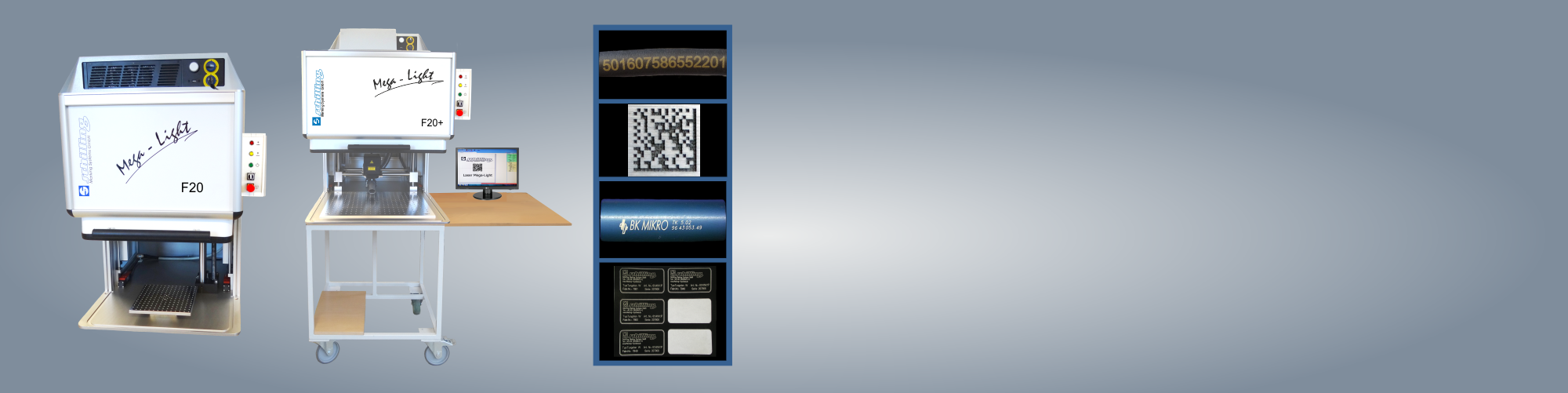

MEGA-LIGHT F20

With the F20 to the future

MEGA-LIGHT F20+

Plenty of space for fast laser markings





  • Perfect for (very) large quantities
  • Manual door with comfortable U-shape
  • 20 watt fiber laser
  • For metals and plastics
  • Simple installation and operation
  • For maximum part size 465 x 262 x 254 mm (L x W x H)
  • Also available as Mega-Light F20+ for larger parts
  • Title block: 140 x 140 mm
  • Automatic z-axis
  • High marking speed
  • Aiming beam to display the dimension, position and to focus
  • With large perforated plate
  • Protective cabinet laser class 1
  • Database connections
  • Various accessories (e. g. rotary axes, nameplate feeds...)
  • 20 watt fiber laser for large quantities
  • Fast laser markings on metals and plastics
  • Laser safety cabinet on roller table
  • Compact with embedded PC
  • Manual door with protection window and comfortable U-shape
  • Also available as Ultra-Light version with automatic door
  • For marking large parts or many small parts
  • Maximum part size 545 x 655 x 300 mm (L x W x H)
  • Simple installation and operation
  • Marking field up to 530 x 180 mm
  • Automatic x- and z-axis
  • With large perforated plate
  • Database connections
  • Inspection system for codes
  • Various accessories (e. g. rotary axes)

The 20 watt fiber marking laser Mega-Light F20 is one of the fastest marking lasers in the Schilling Mega-Light family and is thus especially suited to marking large numbers of parts. In order to achieve high marking efficiency, the F20 is equipped with a standard marking field of 140 x 140 mm. Individual devices additionally increase the marking speed, since the ideal use of the available marking space is facilitated and insertion of the parts is simplified. Thus time and money can be saved. Furthermore, the large F20 laser protection cabinet of laser safety class 1 allows quick, professional and contact-free marking of individual large components or many smaller parts. Thanks to the programmable automatic z-axis, you are always flexible with regard to the component height of your parts to be marked.





For marking larger parts, the 20 watt laser source can be integrated in the large standard cabinet of the Mega-Light Plus series. The additional automatic x-axis of the Mega-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Mega-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the Mega-Light F20+ can easily be adapted to special marking requirements.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.




Marking Laser Mega-Light F20 / F20+
