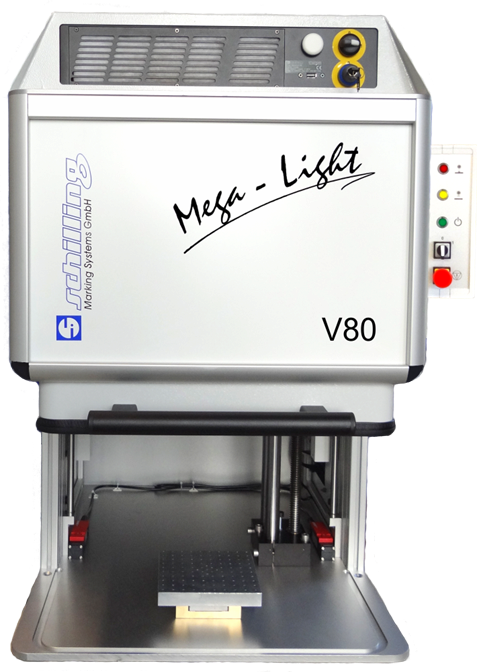

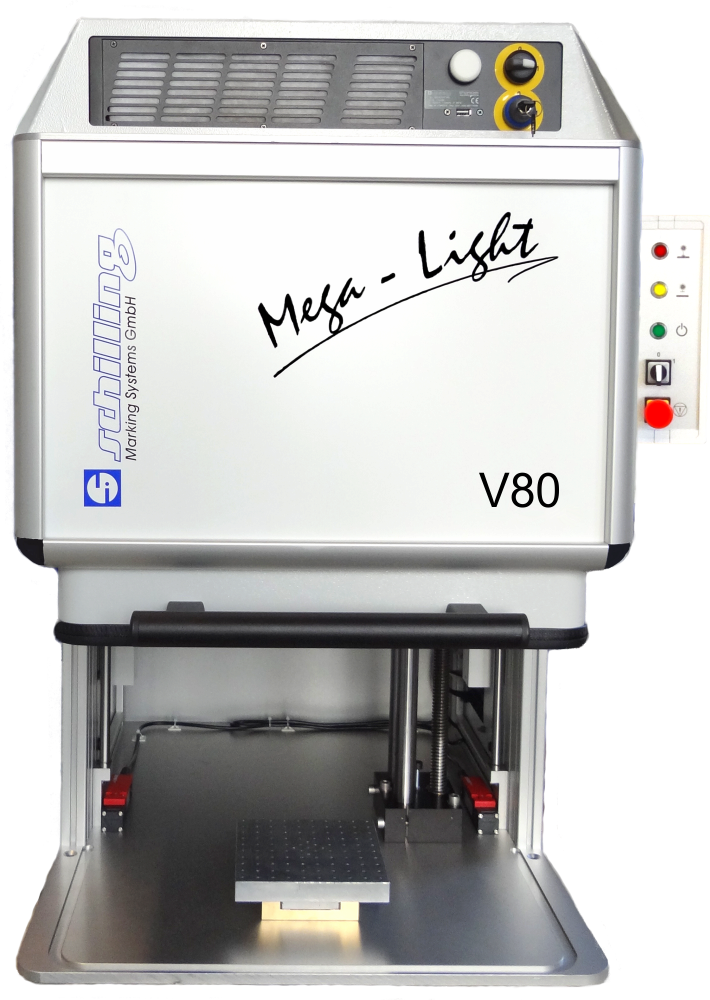

MEGA-LIGHT V80

A class faster

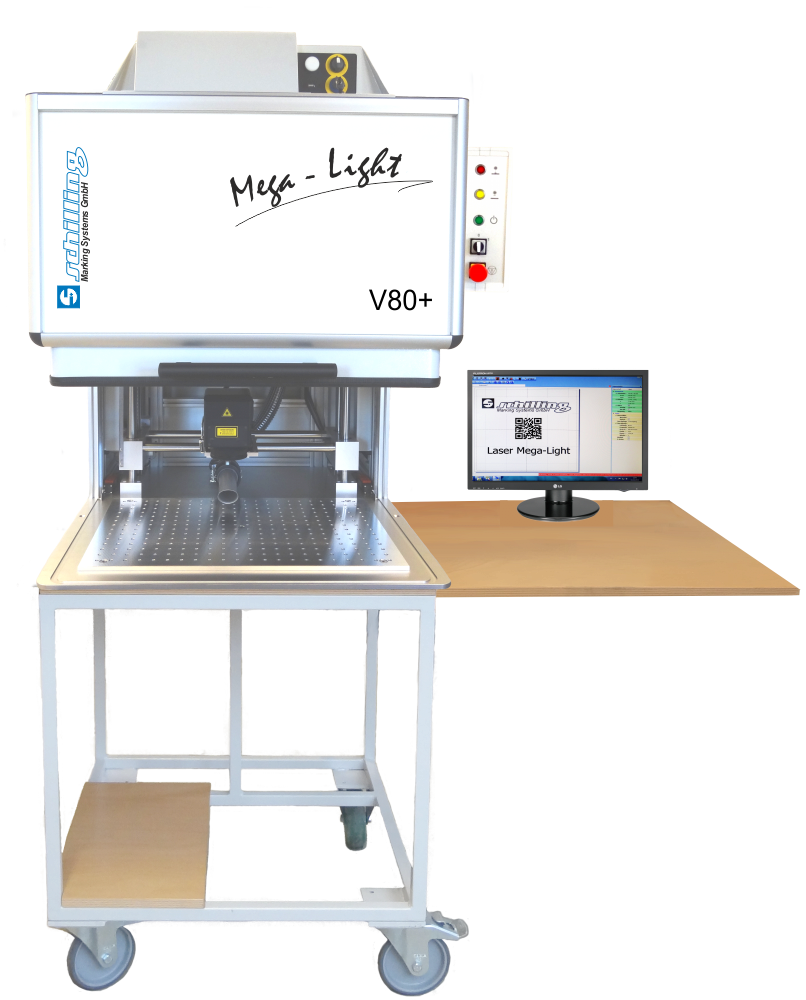

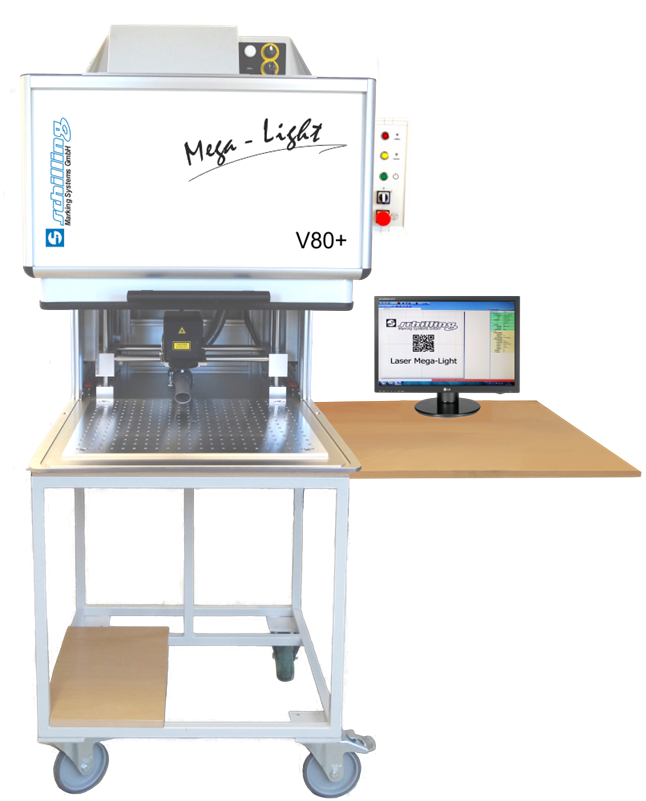

MEGA-LIGHT V80+

True greatness





  • Perfect for large quantities
  • Permanent markings on metals and plastics
  • Manual protective door with comfortable U-shape
  • 20 watt diode laser
  • Title block: 120 x 120 mm
  • For maximum part size 465 x 262 x 335 mm (W x D x H)
  • Also available as Mega-Light V80+ for marking larger parts
  • Including embedded PC and marking software
  • Automatic z-axis
  • Aiming beam to display the dimension, position and to focus
  • Simple installation and operation
  • Database connections possible
  • With perforated plate
  • Various accessories (e. g. rotary axes) available

  • 20 watt diode laser
  • Laser marking on metals and plastics
  • Large standard cabinet on roller table
  • With laser safety window
  • Manual door with comfortable U-shape
  • Optionally availabla as Ultra-Light with automatic door
  • For markinglarge parts or many small parts
  • For maximum part size 545 x 655 x 300 mm (W x D xH)
  • Simple and comfortable operation
  • Marking field up to 530 x 180 mm
  • Focussing. and positioning laser
  • Automatic x- and z-axis
  • With large perforated plate
  • Database connections possible

With its 20 watt output, the Mega-Light V80 is one of the fastest lasers in the Schilling laser family and meets the highest quality requirements. Its large protective cabinet of laser safety class 1 allows fast, professional and contact-free marking of small and large parts. At the same time, the automatic z-axis offers the highest level of comfort when adjusting the laser source to your part height. Within the marking space of 120 x 120 mm provided as standard, there are no limits to marking desires. With the Mega-Light V80 marking logos, graphics, texts, figures, codes, consecutive numberings or even round sets can easily be realized. For larger markings, a marking space of 180 x 180 mm is optionally available.





For marking larger parts, the 20 watt laser source can be integrated in the large standard cabinet of the Mega-Light Plus series. The additional automatic x-axis of the Mega-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Mega-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the V80+ can easily be adapted to special marking requirements.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.




Marking Laser Mega-Light V80 / V80+
