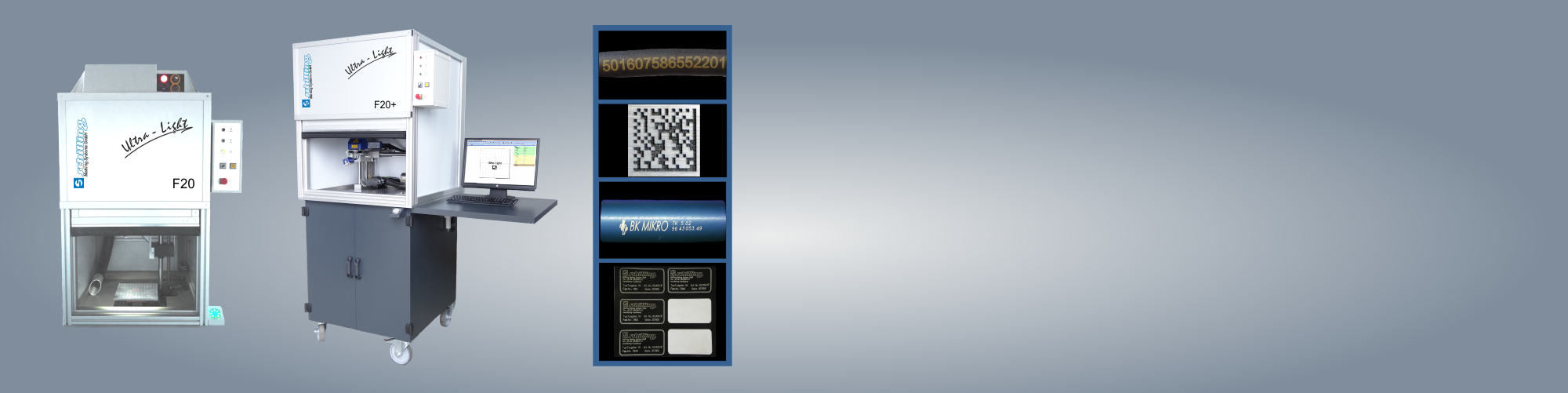

ULTRA-LIGHT F20

With 20 watt power into the future

ULTRA-LIGHT F20+

Ultra fast. Ultra silent. Ultra-Light F20+.





  • 20 watt fiber laser for large quantities
  • Including automatic door opening and closing
  • For metals and plastics
  • Easy marking software
  • Including extraction system
  • For maximum part size 535 x 272 x 342 mm (W x D x H)
  • Title block: 140 x 140 mm
  • Automatic z-axis
  • Large perforated plate
  • Cabinet with safety pressure bar
  • Database connection to existing systems
  • Red positioning and focussing laser beam
  • Easy and comfortable operation
  • 20 watt fiber laser for large quantities
  • Pneumatic door opening and closing
  • Automatic x- and z-axis
  • Framed roller table with embedded PC
  • Silent operation
  • Easy and comfortable operation
  • For maximum part size 740 x 480 x 340 mm (W x D x H)
  • Marking field up to 530 x 180 mm
  • Compact dimensions
  • With large perforated plate
  • Cabinet with laser safety class 1
  • Database connection to existing systems
  • Various accessories (e. g. rotary axes) available

With the marking laser Ultra-Light F20 fast and precise laser markings on metals and plastics can be realized. The 20 watt fiber laser system Ultra-Light F20 is already today a good investment for the future: At the beginning the Ultra-Light marking laser can be used as standalone machine. And if necessary in the future it can be combined with robotic systems. The scope of delivery of the Ultra-Light F20 includes a 20 watt fiber laser source with focussing and positioning laser, the laser cabinet with automatic door opening and closing, an extraction system and PC with marking software. Furthermore the package is completes by a lens for a marking field of 140 x 140 mm. Within this marking area it is possible to create codes, texts, numbers, logos and so on.





For marking larger parts the 20 watt fiber laser F20 can also be integrated into the large safety cabinet of the Ultra-Light Plus Series. That way the marking field can be increased up to 530 x 180 mm. This way it is possible to mark many small parts or large parts. Various accessories, e. g. rotary axes and the inspection system VISION,
complete the lasers. Special software connections, for instance to SAP and Majesty, are also possible. The standard scope of delivery of the Ultra-Light F20+ includes a 20 watt diode laser source, a large safety cabinet with pneumatic door opening and closing, a large perforated plate, an embedded PC with marking software and an automatic x- and z- axis. Additionally a high-quality extraction system is included.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.
