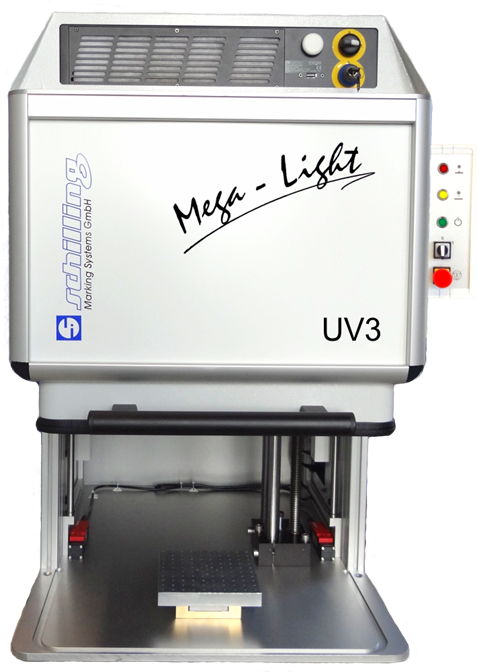

MEGA-LIGHT UV3

Best laser markings on plastics

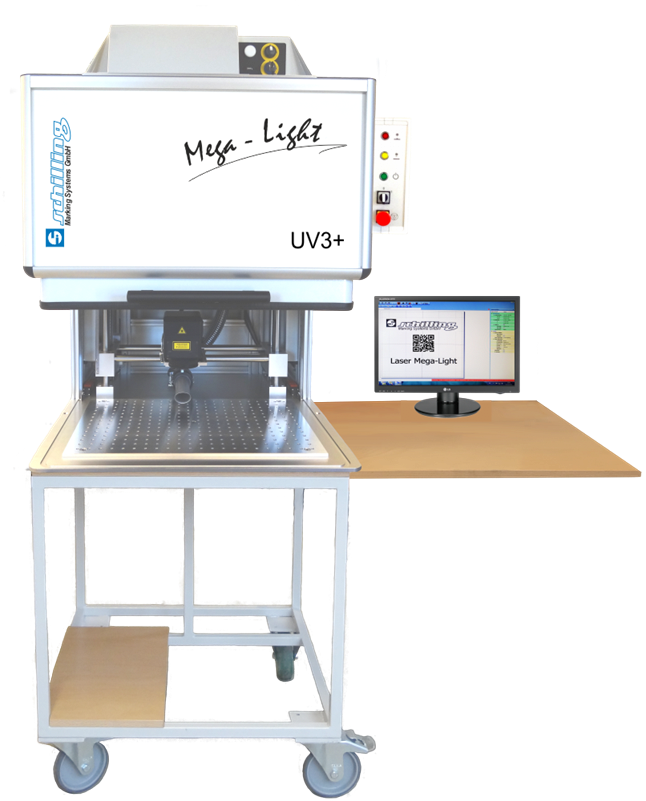

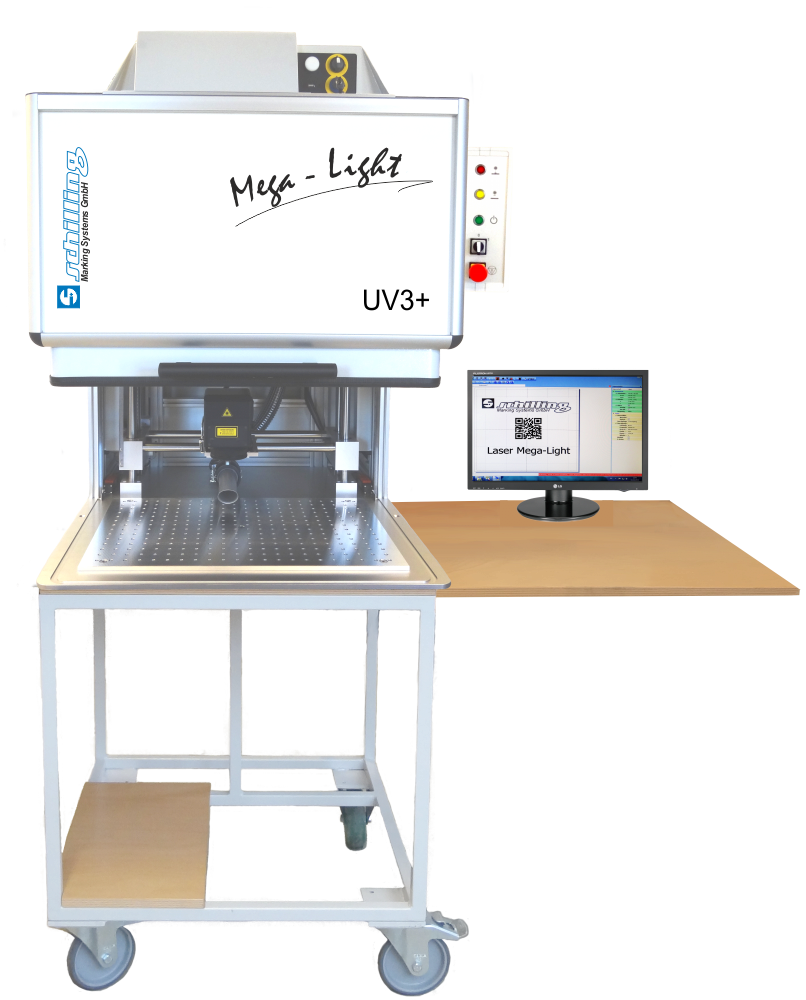

MEGA-LIGHT UV3+

More ultraviolet marking laser





  • Ultraviolet marking laser with 3 watt power
  • Manual door with comfortable U-shape
  • For laser markings on plastics
  • For maximum part size 465 x 262 x 254 mm (L x W x H)
  • Also available as Mega-Light UV3+ for large parts
  • Title block: 120 x 120 mm
  • Fast and simple installation
  • Automatic z-axis
  • Simple operation
  • Aiming beam to display the dimension, position and to focus
  • With large perforated plate
  • Laser saftey cabinet laser class 1
  • Connection to databases
  • Various accessories (e. g. rotary axes) available
  • 3 watt ultraviolet laser for laser markings on plastics
  • Laser safety cabinet on roller table
  • Compact with embedded PC
  • Manual door with protection window and comfortable U-shape
  • Also available as Ultra-Light version with automatic door
  • For marking large or many small parts
  • Maximum part size 545 x 655 x 300 mm (L x W x H)
  • Simple and comfortable operation
  • Bis zu 530 x 180 mm großes Beschriftungsfeld
  • Automatic x- and z-axis
  • With large perforated
  • Connection to databases
  • Various accessories (e. g. rotary axes)

Ultraviolet laser systems are perfect for markings on plastics. Ultraviolet marking lasers have a wavelength of 355 nm and mark the material very carefully. The Mega-Light complete sets consist of a 3 watt ultraviolet laser source, a laser safety cabinet laser class 1, an aoutmatic z-axis, a focussing and positioning laser, a perforated plate and an embedded PC with simple marking software. The Mega-Light UV3 has a marking field of 120 x 120 mm. Within this marking field logos, continuous numbering, codes and much more can be lasered easily. Furthermore it is possible to realize round markings.





For marking larger parts, the 3 watt uv laser  can be integrated in the large standard cabinet of the Mega-Light Plus series. The additional automatic x-axis of the Mega-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Mega-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the Mega-Light UV3+ can easily be adapted to special marking requirements. For instance database connections and traceability solutions are available.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.
