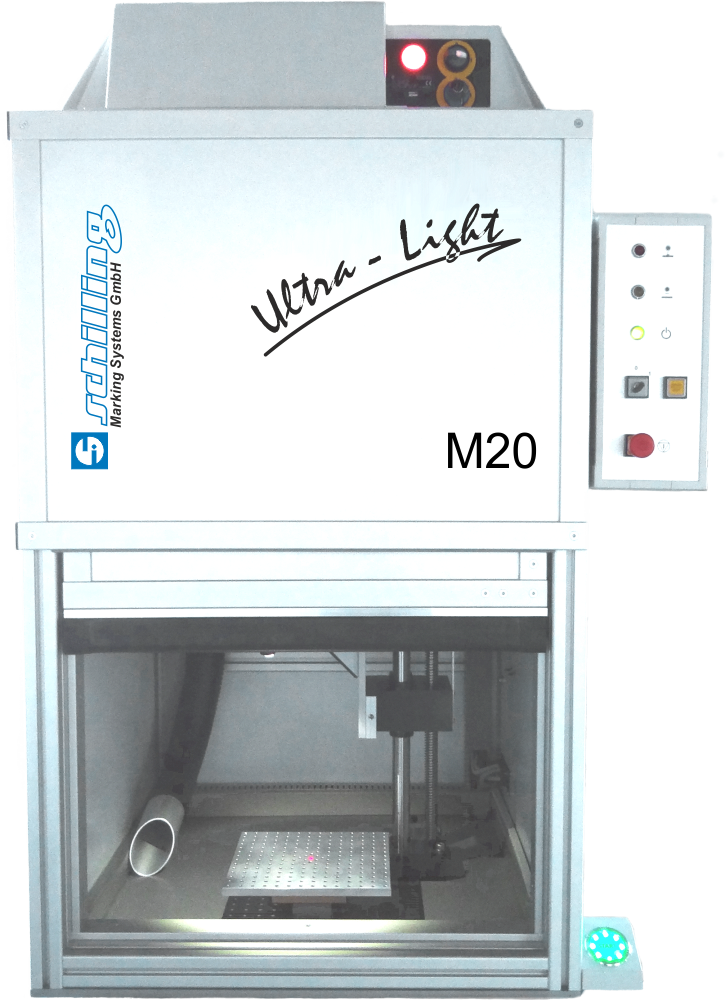

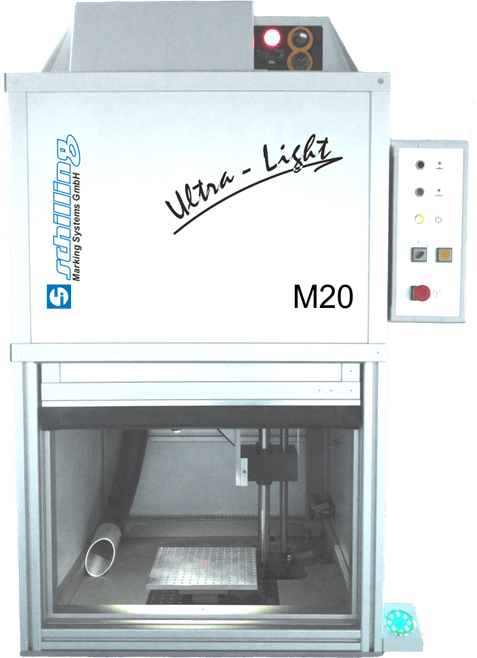

ULTRA-LIGHT M20

Laser markings with MOPA technology

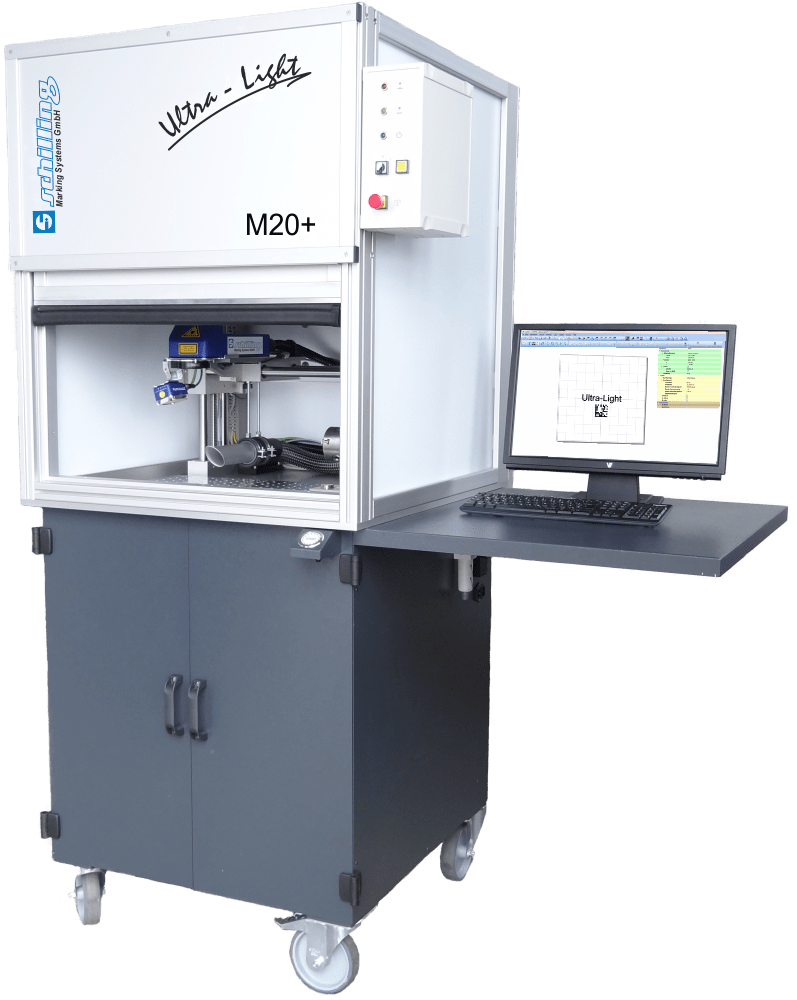

ULTRA-LIGHT M20+

Short pulses. High frequencies. Ultra-Light M20+.





  • Short pulse fiber laser with 20 watt power
  • Automatic door opening and closing
  • New MOPA (Master Oscillator Power Amplifier) technology
  • For very fast laser markings
  • Perfect for plastics and sensitive materials
  • High frequencies up to 500 kHz
  • Adjustable pulse widths
  • Black laser markings on annodized aluminium
  • For maximum part size 465 x 262 x 254 mm (L  x W x H)
  • Title block: 140 x 140 mm
  • Automatic z-axis
  • With large perforated plate
  • Laser safety cabinet laser class 1
  • Database connections
  • Various accessories (e. g. rotary axes)
  • 20 watt short pulse fiber laser for large quantities
  • Fast laser markings on metals and plastics
  • Framed roller table with includes extraction system
  • Compact with embedded PC
  • Manual door with protection window and comfortable U-shape
  • Also available as Ultra-Light version with automatic door
  • For marking large parts or many small parts
  • Maximum part size 545 x 655 x 300 mm (L x W x H)
  • Simple and comfortable operation
  • Marking field up to 530 x 180 mm
  • Automatic x- and z-axis
  • With large perforated plate
  • Database connections possible
  • Inspection system for codes
  • Various accessories (e. g. rotary axes)

Marking laser machines are pulsing the light. That means that the laser light is emitted in portions (so called pulses). Mostly these pulses can not be changed. With the 20 watt short pulse fiber laser Ultra-Light M20 it is possible to adjust the pulse. That way pulses of up to up 500 kHz can be realized. The combination of short pulses and high frequencies is for instance good for realizing sensitive laser markings. Therefore the M20 is very good for marking plastics or medical instruments. Another advantage of the short pulse fiber laser technology is the very short marking time. The Ultra-Light M20 is perfect for special marking requirements. Working with the Ultra-Light M20 is very comfortable, as the machine has an automatic door opening and closing. Furthermore the standard scope of delivery includes an extraction system for marking lasers. Therefore the M20 is especially suited for marking (very) large numbers of parts.





For marking larger parts, the short pulse fiber laser M20 can be integrated in the large standard cabinet of the Ultra-Light Plus series. The additional automatic x-axis of the Ultra-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Ultra-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the Ultra-Light M20+ can easily be adapted to special marking requirements. For instance database connections and traceability solutions are available. The Ultra-Light M20+ is especially suited for marking large quantities as it's automatic door opening and closing and its integrated extraction system allow very comfortable laser markings.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.
