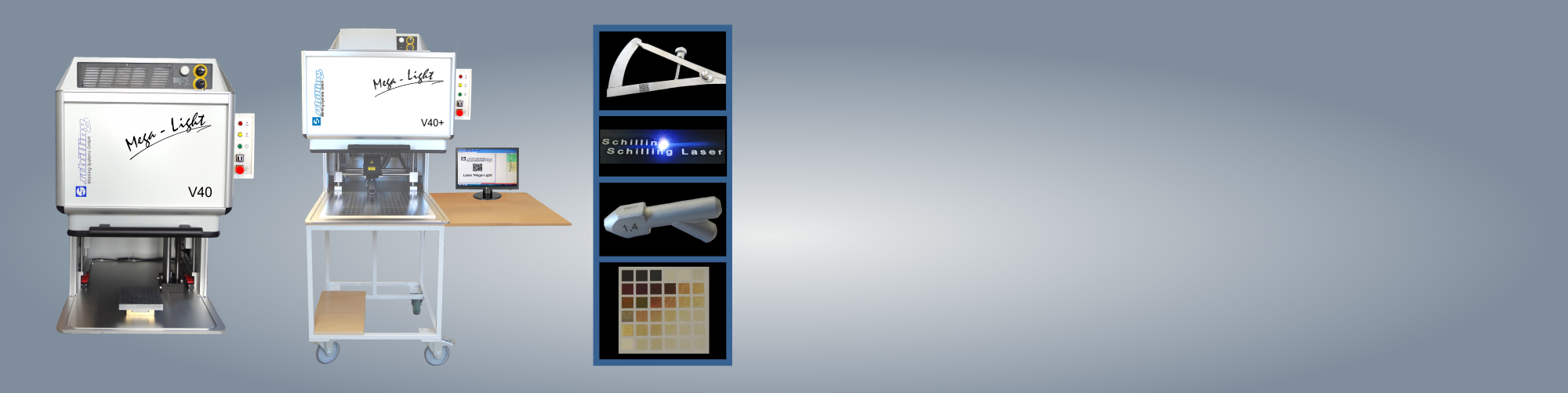

MEGA-LIGHT V40

Compact 10 watt power

MEGA-LIGHT V40+

More room. More axes. More laser marking.





  • For medium sized series
  • Permanent markings on metals and plastics
  • Manual safety door with comfortable U-shape
  • 10 watt diode laser
  • Title block: 120 x 120 mm
  • For maximum part size 465 x 262 x 335 mm (W x D x H)
  • Including embedded PC and marking software
  • Automatic z-axis
  • Aiming beam to display the dimension, position and to focus
  • Simple installation and operation
  • Safety cabinet of laser class 1
  • Simple graphic user interface
  • Database connection to existing systems
  • Including perforated plate
  • Various accessories (e. g. rotary axes) available

  • 10 watt diode laser
  • Laser marking of metals and plastics
  • Large standard cabinet on roller table
  • With laser safety window
  • Manual door with comfortable U-shape
  • Optionally available as Ultra-Light with automatic door
  • For marking large parts or many small parts
  • For maximum part size 545 x 655 x 300 mm (W x D x H)
  • Simple and comfortable operation
  • Marking field up to 530 x 180 mm
  • Focussing- and positioning laser
  • Automatic x- and z-axis
  • With large perforated plate
  • Database connections possible
  • Various accessories (e. g. rotary axes) available

The 10 watt marking laser Mega-Light V40 is perfect for fast and professional laser markings of medium sized series. Thanks to the optimally coordinated Mega-Light laser technology consisting of a marking laser, a protective cabinet, an automatic z-axis, a boss, a PC and software, the Mega-Light V40 is simple to operate and to install. As standard the Mega-Light V40 has a marking space of 120 x 120 mm. In this marking space, there are no limits to marking desires: logos, graphics, texts, figures, codes such as DataMatrix and bar codes, consecutive numberings or even round sets are no problem to mark with the Mega-Light V40.





For marking larger parts, the 10 watt laser source can be integrated in the large standard cabinet of the Mega-Light Plus series. The additional automatic x-axis of the Mega-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Mega-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the V40+ can easily be adapted to special marking requirements.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.




Marking Laser Mega-Light V40 / V40+
