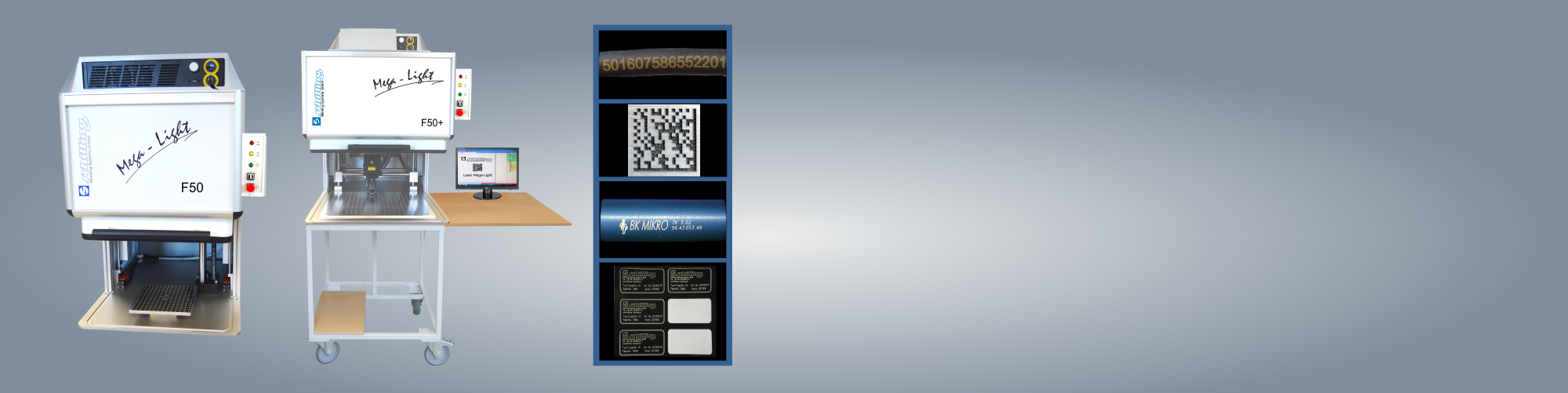

MEGA-LIGHT F50

Fast, faster, fiber laser F50

MEGA-LIGHT F50+

Plenty of space for fast laser engravings





  • Laser engravings on very large quantities
  • Laser markings on metals and plastics
  • 50 watt fiber laser
  • High temperature stability
  • Simple and comfortable operation
  • Manual door with comfortable U-shape
  • High marking speed
  • Title block: 140 x 140 mm
  • For maximum part size 465 x 262 x 254 mm (L x W x H)
  • Also available as Mega-Light F50+ for marking larger parts
  • Small dimensions and lightweight
  • Including PC and marking software
  • Various accessories available
  • Aiming beam to display the dimension, position and to focus
  • Laser protection cabinet with laser safety class 1
  • 50 watt fiber laser for very large quantities
  • Very fast laser engravings on metals and plastics
  • Laser cabinet on roller table
  • Including embedded PC
  • Manual door with protection window and comfortable U-shape
  • Also available as Ultra-Light version with automatic door
  • For marking large parts or many small parts
  • Maximum part size 545 x 655 x 300 mm (L x W x H)
  • Simple installation and operation
  • Marking field up to 530 x 180 mm
  • Automatic x- and z-axis
  • With large perforated plate
  • Database connections
  • Inspection system for codes
  • Various accessories (e. g. rotary axes)

The 50 watt fiber marking laser Mega-Light F50 is the fastest marking laser in the Schilling Mega-Light family and is thus especially suited to marking large numbers of parts. In order to achieve high marking efficiency, the F50 is equipped with a standard marking field of 140 x140 mm. Individual devices additionally increase the marking speed, since the ideal use of the available marking space is facilitated and insertion of the parts is simplified. Thus time and money can be saved. Furthermore, the large F50 laser protection cabinet of laser safety class 1 allows quick, professional and contact-free marking of individual large components or many smaller parts. Thanks to the programmable automatic z-axis, you are always flexible with regard to the component height of your parts to be marked.





For marking larger parts, the 50 watt laser source can be integrated in the large standard cabinet of the Mega-Light Plus series. The additional automatic x-axis of the Mega-Light Plus series increases the marking field to up to 530 x 180 mm. That way it is possible to mark a large number of small parts in one work process. Due to the larger protective cabinet of the Mega-Light Plus series it is furthermore possible laser individually large parts. With various accessories, such as for example rotary axes and type plate feeds, the Mega-Light V50+ can easily be adapted to special marking requirements.


Marking Laser Options and Accessories



Various accessories and numerous options for versatile purposes complete the Schilling marking laser product range. For example extraction systems, rotary axes, inspection systems, data base connections as well as axes and handling systems are available:


If your parts can be marked with Schilling marking lasers can be tested at our premises. Just send us your parts for free test markings. Please add the information, what we shall mark on your parts.



Furthermore it is possible to get a demo unit. That way you can convoince yourself of the good quality of the Schilling marking laser systems. Please contact us for an offer about a demo unit.




Marking Laser Mega-Light F50 / F50+
